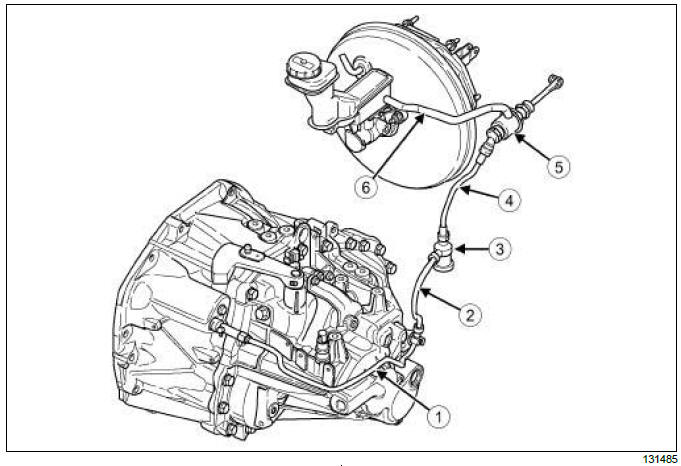

6-SPEED MANUAL GEARBOX

  1. Hydraulic clutch control pipe
  2. Connecting hose (in a unit with the clutch control pipe)
  3. Clutch hydraulic shock absorber
  4. Connecting pipe
  5. Clutch master cylinder
  6. Clutch master cylinder supply hose

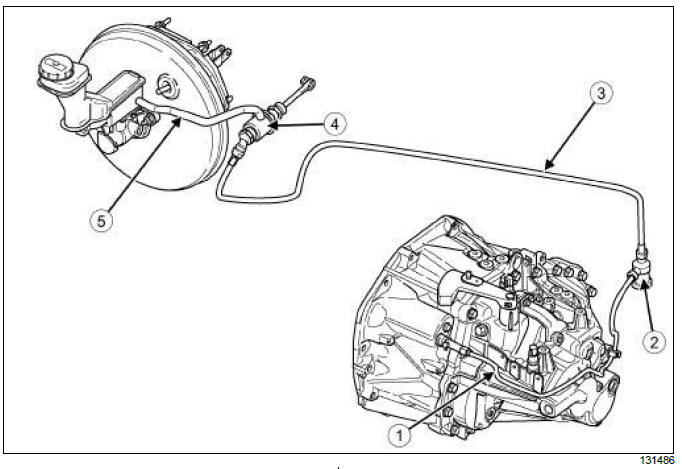

LEFT-HAND DRIVE

Mechanical component controls

  1. Clutch control pipe
  2. Clutch hydraulic shock absorber
  3. Connecting pipe
  4. Clutch master cylinder
  5. Clutch master cylinder supply hose

RIGHT-HAND DRIVE

Mechanical component controls

    Parking brake lever: Adjustment

    Clutch pedal: Removal - Refitting
