Renault Koleos Service Repair Manual: Gearbox oil sump: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Automatic gearbox / Gearbox oil sump: Removal - Refitting

FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the engine undertray.
  • Drain the automatic gearbox (see 23A, Automatic gearbox, Automatic gearbox oil: Draining - Filling, page 23A-11) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

  • Remove:

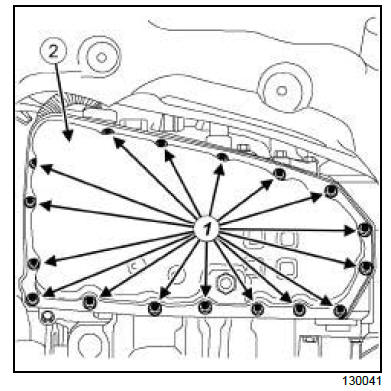

    • the sump bolts (1) ,
    • the sump (2) ,
    • the sump seal,
    • the sump magnets.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace:
    • the sump bolts,
    • the sump seal.
    • Clean the magnets.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the sump magnets,
    • the new seal on the sump,
    • the sump,
    • the sump bolts,
  • Torque tighten the oil sump bolts (8 N.m).

III - FINAL OPERATION.

  • Top up the automatic gearbox (see 23A, Automatic gearbox, Automatic gearbox oil: Draining - Filling, page 23A-11) .
  • Refit the engine undertray.
