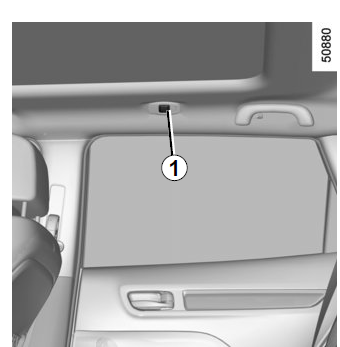

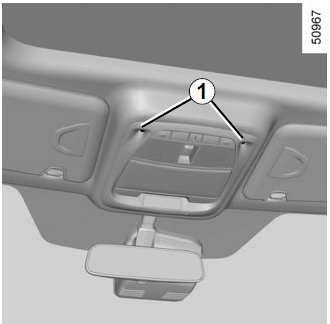

Map reading lights 1 Please consult an authorised dealer.
Ambient lights 2 Please consult an authorised dealer.

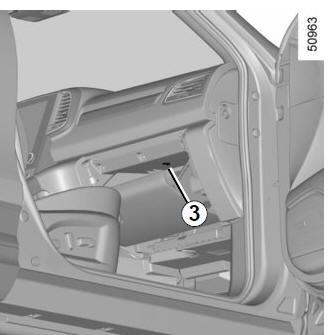

Glove box lights 3 Please consult an authorised dealer.

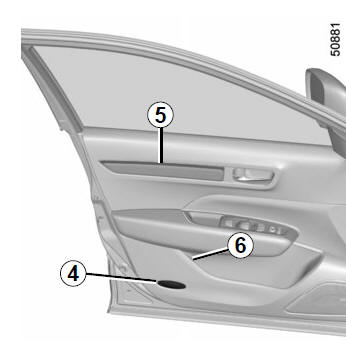

Front door lights 4, door ambient light 5, door storage light 6 Please consult an authorised dealer.

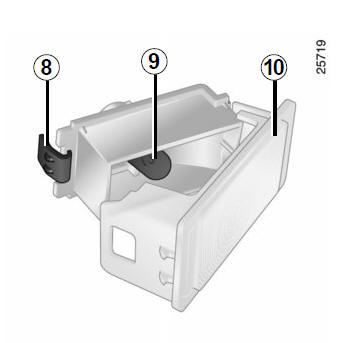

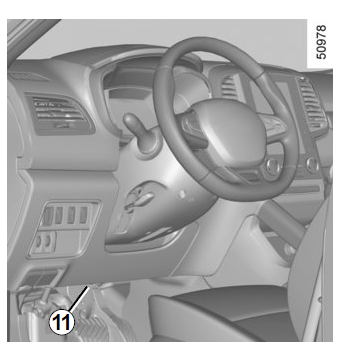

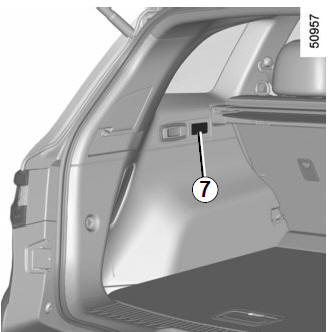

Boot lights 7 Unclip light 7 by pressing the tabs on each side (using a flat-blade screwdriver or similar). Disconnect the light. Press tab 8 to release the lens 10 and access bulb 9. Bulb type: W5W. Front foot lights 11 Please consult an authorised dealer.
|
