Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Switch off the ignition.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

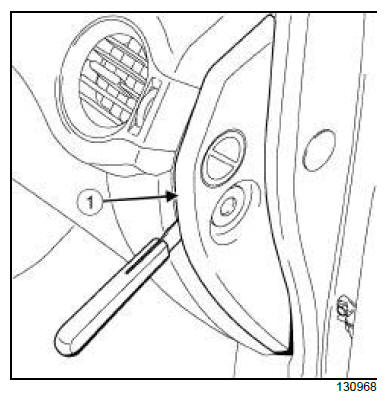

  • Unclip the side panel (1) using the tool (Car. 1363).

Electrical equipment

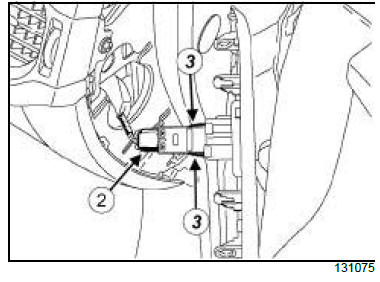

  • Disconnect the inhibitor switch connector (2) .
  • Remove the inhibitor switch by pressing on the clips (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the inhibitor switch on the side panel.
  • Connect inhibitor switch connector.
  • Clip the side panel onto the dashboard.

II - FINAL OPERATION.

  • Check:
    •  the operation of the deactivation switch,
    •  the " airbag OFF " warning light on the instrument panel.

Front seat lap belt pretensioner: Removal - Refitting

Electrical equipment

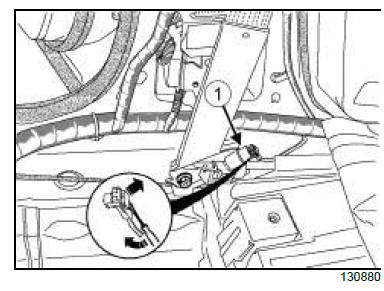

Note: The front side seat lap belt pretensioner (1) cannot be separated from the front side seat belt. In the event of a fault, replace the front side seat belt (see 88C, Air bag and Pretensioners, Front side seat belt: Removal - Refitting, page 88C-27) .
