ELECTRICAL SUNROOF + FIXED REAR

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the interior light (see 81B, Interior lighting, Interior light: Removal - Refitting, page 81B- 4) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

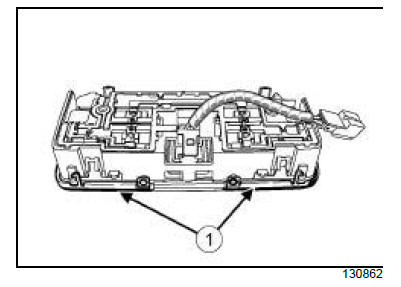

  • Unclip the translucent covers (1) .

Electrical equipment

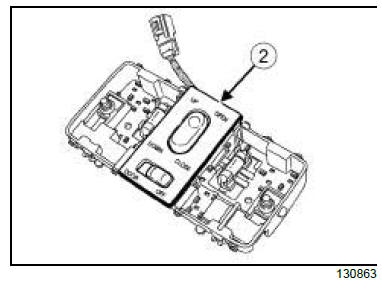

  • Unclip the sunroof switch cover (2) .

Electrical equipment

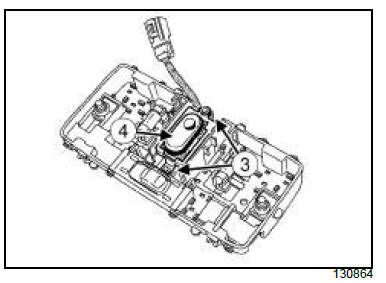

  • Remove:
    • the sunroof switch bolts (3) ,
    • the sunroof switch (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the sunroof switch,
    • the sunroof switch bolts,
    • the sunroof switch cover,
    • the translucent covers.

II - FINAL OPERATION.

  • Refit the interior light (see 81B, Interior lighting, Interior light: Removal - Refitting, page 81B-4) .
