Electrical equipment

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Remove:
    • the cover,

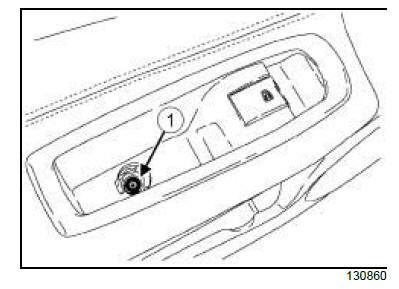

    • bolt (1) .

Electrical equipment

  • Unclip the rear electric window switch plate using the tool (Car. 1363).

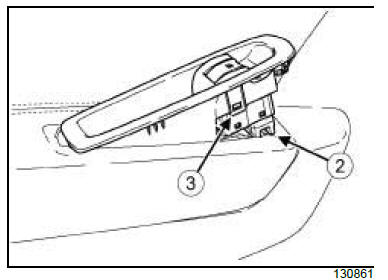

  • Disconnect the rear electric window switch connector (2) .
  • Unclip the two clips (3) .
  • Separate the rear electric window switch from the plate.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear electric window switch on the plate.
  • Connect the rear electric window switch connector.
  • Refit:
    • the rear electric window plate by inserting it from the rear,
    • the bolt,
    • the cover.
