Front seat frames and runners

REMOVAL

I - REMOVAL PREPARATION OPERATION

IMPORTANT To avoid any triggering at the time of an operation on or near to a pyrotechnic component (airbags or pretensioners), wait for at least three minutes after battery disconnection.

Disconnect the battery (see Battery : Removal - Refitting) (80A, Battery).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Front seat frames and runners

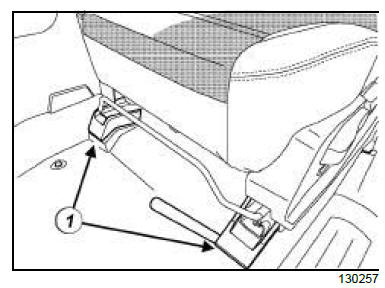

Remove the covers (1) .

Front seat frames and runners

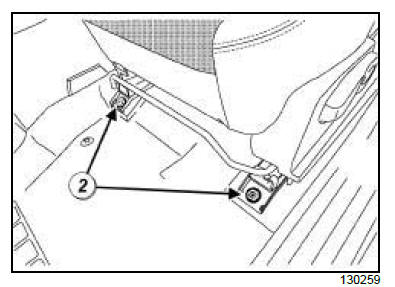

Remove the bolts (2) from the entire front seat.
Move the seat as far forward as possible.

Front seat frames and runners

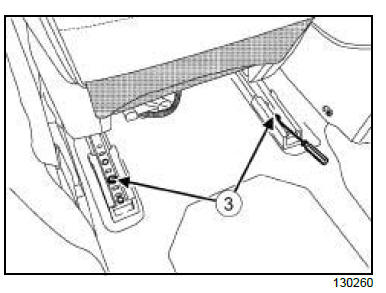

Remove the bolts (3) from the entire front seat.
Disconnect the connectors under the seat (depending on equipment level).
Remove the front seat.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Fit the seat, in the vehicle.
Connect the connectors under the seat (depending on equipment level).
Refit the bolts (3) from the complete front seat.

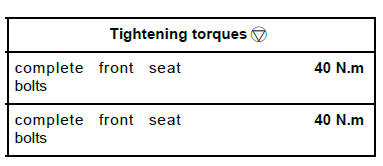

Torque tighten the complete front seat bolts (40 N.m) (3) .
Refit the bolts (2) from the complete front seat.
Torque tighten the complete front seat bolts (40 N.m) (2) .
Move the seat back.
Refit the covers.

II - FINAL OPERATION.

Connect the battery (see Battery : Removal - Refitting) (80A, Battery).
