Exterior equipment

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Exterior equipment

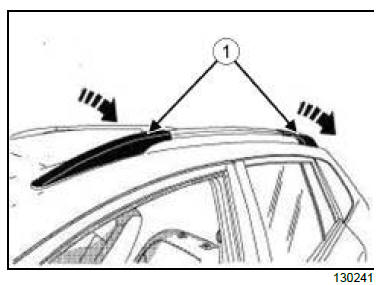

  • Remove the front and rear roof bar trims (1) by turning them from the inside towards the outside.

Exterior equipment

  • Remove:

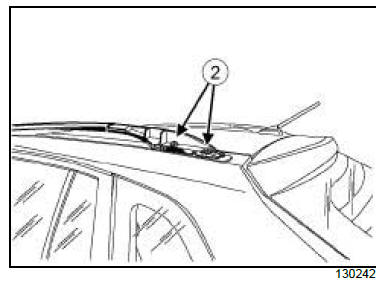

    • the front and rear bolts (2) ,
    • the roof bar.
  • Carry out the same operation for the roof bar on the left-hand side.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the roof bar,
    • the bolts,
    • the front and rear roof bar trims.
  • Torque tighten the roof bar bolts (25 N.m).

II - FINAL OPERATION

  • Check that it is operating correctly.
