REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the upper trim of the C-pillar (see C-pillar upper trim: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Windows

  • Protect the edge of the rear quarter panel window using masking tape.

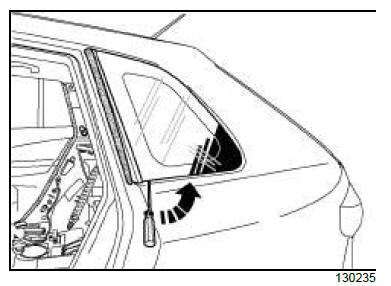

  • Pierce the cement bead using a cutting wire in the rear section.
  • Begin cutting the cement bead.

REFITTING

I - OPERATION FOR PREPARATION OF PART CONCERNED

Windows

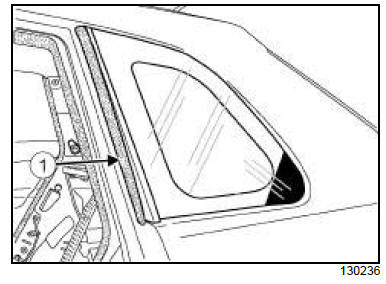

  • Replace the seal (1) if necessary.
  • For the preparation and the bonding (see Window bonding: Description) (Technical Note 560A, Windows).

II - REFITTING OPERATION FOR PART CONCERNED

Windows

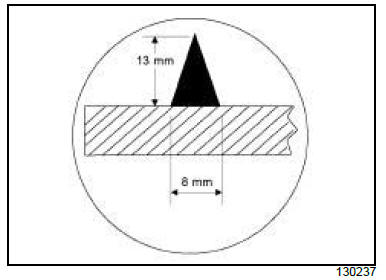

  • Use the correct size of cement bead.

Windows

  • Bond the rear quarter panel window.

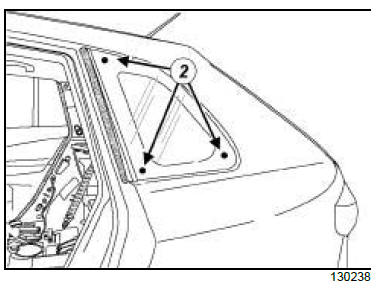

  • Refit the rear quarter panel window with the clips (2) .
  • Balance the adjustments and shut the lines.
Note: Once the cement has dried, cut the tabs at the stops.

III - FINAL OPERATION

  • Refit:
    • the upper trim of the C-pillar (see C-pillar upper trim: Removal - Refitting) (71A, Body internal trim),
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim).
    Rear side door sliding window: Removal - Refitting

    Rear screen: Removal - Refitting
