ELECTRICAL SUNROOF + FIXED REAR SECTION

Non-side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Half-open the mobile panel.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

  • Protect the upper bar of the sunroof deflector using masking tape
  • Remove:

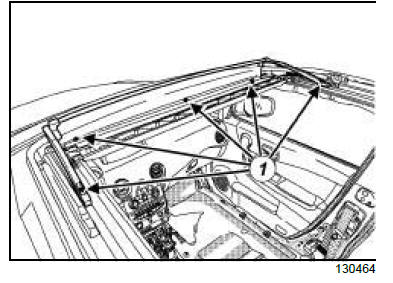

    • the bolts (1) of the sunroof deflector,
    • the sunroof deflector.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Position the deflector return spring.
  • Keep the deflector under pressure.
  • Refit the sunroof deflector bolts.
  • Torque tighten the sunroof deflector bolts (2 N.m).
