I - MEASURING POINTS

Note: Measure the value unladen. Unladen means that the fuel tank and engine coolant and oil reservoirs are full. The emergency spare wheel, jack, hand tools and carpets are in place.

General information

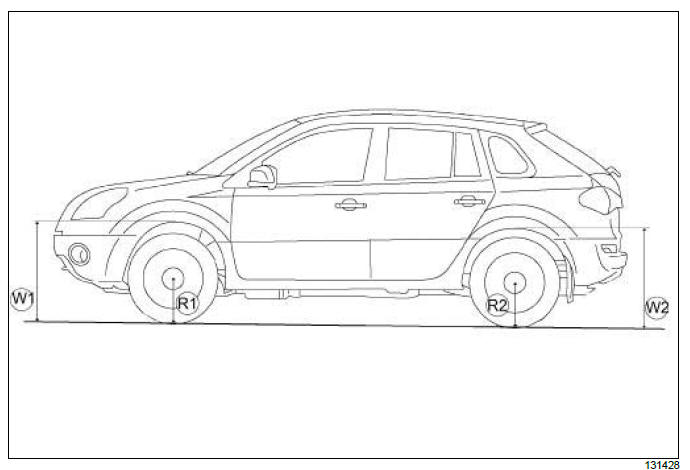

(R1) Distance between the ground and the front wheel axis.
(R2) Distance between the ground and the rear wheel axis.
(W1) Distance between the ground and the top of the front wheel arch.
(W2) Distance between the ground and the top of the rear wheel arch.

II - VEHICLE IN WORKING CONDITION

Position VODM (Vehicle in working condition):

  • Tank full,
  • Empty vehicle (without luggage, etc.).

W1 = 779 mm +- 5 mm
W2 = 785 mm +- 5 mm
