2TR

Petrol injection

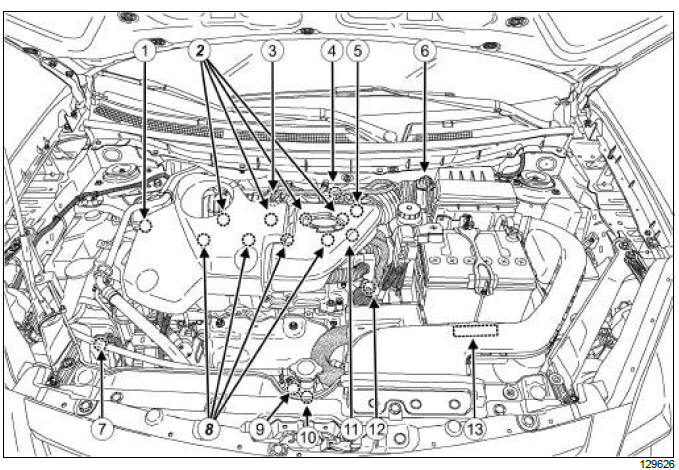

  1. Camshaft dephaser solenoid valve
  2. Injectors
  3. Fuel vapour absorber bleed solenoid valve
  4. Motorised throttle body
  5. Crankshaft position sensor
  6. Airflow meter
  7. Petrol vapour absorber
  8. Ignition coils
  9. Upstream oxygen sensor
  10. Downstream oxygen sensor
  11. Camshaft position sensor
  12. Coolant temperature sensor
  13. Injection computer

Petrol injection

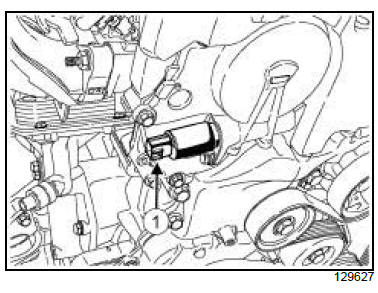

(1) Camshaft dephaser solenoid valve

Petrol injection

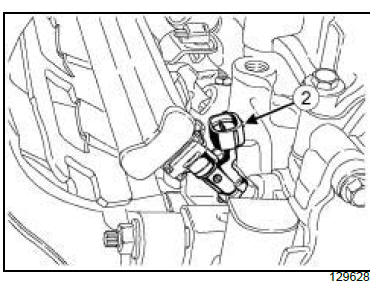

(2) Injector

Petrol injection

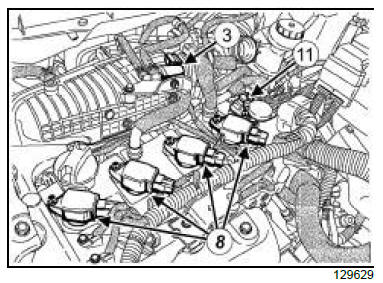

(3) Fuel vapour absorber bleed solenoid valve
(8) Ignition coils
(11) Camshaft position sensor

Petrol injection

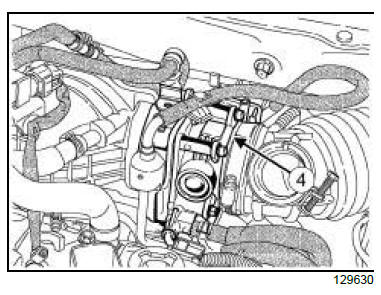

(4) Motorised throttle body

Petrol injection

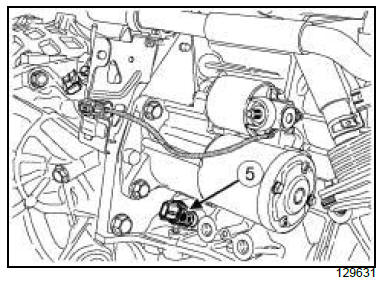

(5) Crankshaft position sensor

Petrol injection

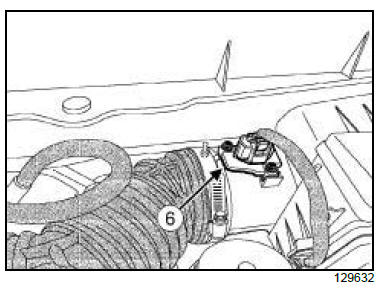

(6) Airflow meter

Petrol injection

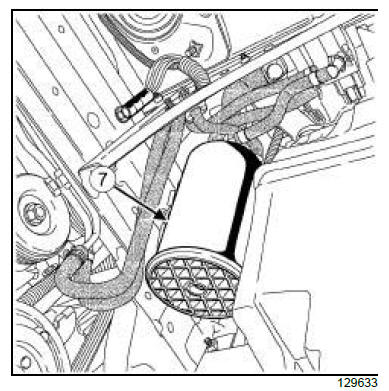

(7) Petrol vapour absorber

Petrol injection

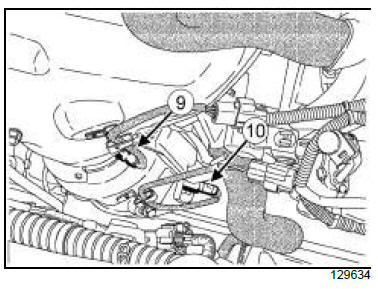

(9) Upstream oxygen sensor
(10) Downstream oxygen sensor

Petrol injection

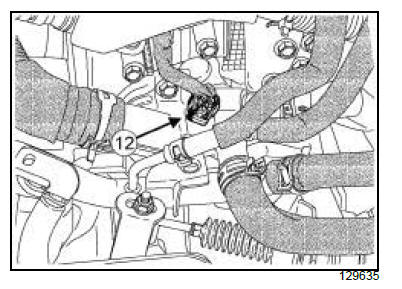

(12) Coolant temperature sensor

Petrol injection

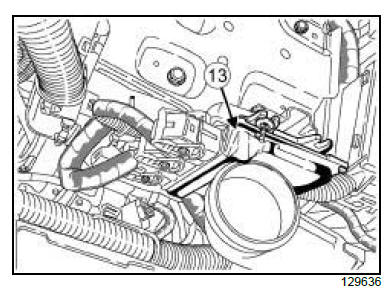

(13) Injection computer

    Petrol injection
