2TR

Fuel supply

IMPORTANT During this operation, be sure to:
  • refrain from smoking or bringing red hot objects close to the working area,
  • be careful of fuel splashes when disconnecting the union.



IMPORTANT Wear goggles with side protectors for this operation.



IMPORTANT Wear leaktight gloves (Nitrile type) for this operation.



Note: This procedure must be carried out with the ignition off.

I - PREPARATION OPERATION FOR CHECK

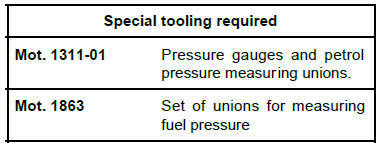

  • Ensure you have a checking tool (Mot. 1311-01) and a " T " union for the tool (Mot. 1863).
  • Disconnect the quick-release union of the supply pipe of the injector rail.
  • Put the " T " union between the fuel supply union and the injector rail.
  • Take a pipe which is long enough to drain the pump into a container and fit it to the " T " outlet union.

II - FUEL FLOW CHECKING OPERATION

  • Insert the pipe into a graduated measuring cylinder (2000 ml).
  • Remove the Protection and Switching Unit cover.

Fuel supply

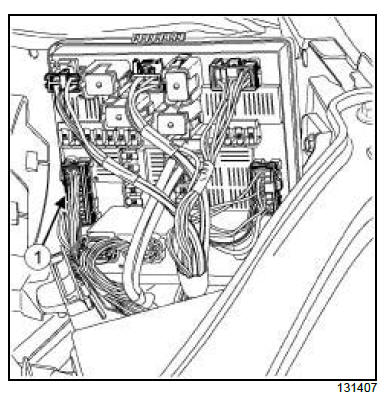

  • Disconnect the white 16-track connector (1) .

Fuel supply

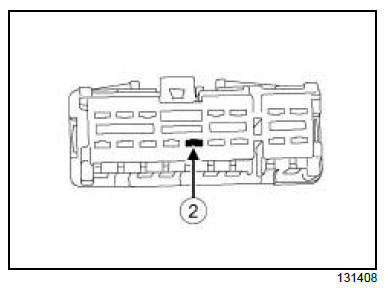

  • Connect the terminal (2) of the white connector to the (+) battery supply to operate the fuel pump.
Note: The flow reading should be between 80 and 120 l/h.
  • Disconnect the (+) battery supply from the terminal (2) of the white connector.

III - FINAL OPERATION.

  • Connect thewhite (1) 16-track connector.
  • Refit the Protection and Switching Unit cover.
  • Disconnect:
    • the union of the fuel supply pipe from the " T " union,
    • the " T " union from the injector rail,
    • the discharge pipe,
  • Connect the quick-release union of the fuel supply pipe to the injector rail .
