Renault Koleos Service Repair Manual: Oil pressure sensor: Removal - Refitting

M9R

Engine and cylinder block assembly

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the engine cover,
    • the alternator.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Engine and cylinder block assembly

  • Disconnect the oil pressure sensor connector.

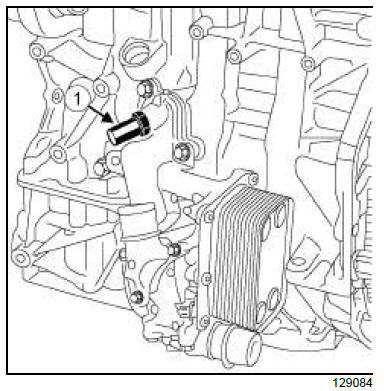

  • Remove the oil pressure sensor (1) using a long socket with a diameter of 22 mm.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the oil pressure sensor.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the oil pressure sensor.
  • Torque tighten the oil pressure sensor (40 N.m) using a long socket with a diameter of 22 mm.
  • Connect the oil pressure sensor connector.

III - FINAL OPERATION

  • Refit:
    • the alternator
    • the engine cover.

2TR

Engine and cylinder block assembly

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift
  • Remove the front right-hand wheel

II - OPERATION FOR REMOVAL OF PART CONCERNED

Engine and cylinder block assembly

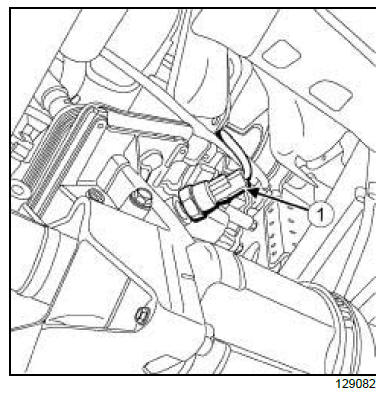

  • Disconnect the oil pressure sensor connector (1) .

Engine and cylinder block assembly

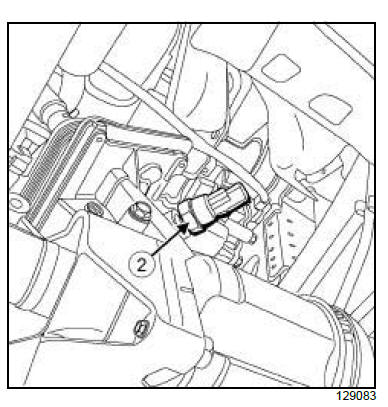

  • Remove the oil pressure sensor (2) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Clean the threading of the oil pressure sensor using SUPER RELEASING AGENT.
  • Coat the threading of the oil pressure sensor with SILICONE ADHESIVE SEALANT.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the oil pressure sensor.
  • Tighten to torque the oil pressure sensor (15 N.m).
  • Connect the oil pressure sensor connector.

III - FINAL OPERATION

  • Refit the front right-hand wheel.
