Renault Koleos Service Repair Manual: Front side door striker panel: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Side opening element mechanisms / Front side door striker panel: Removal - Refitting

Side opening element mechanisms

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

  • Remove:
    • the bolts,

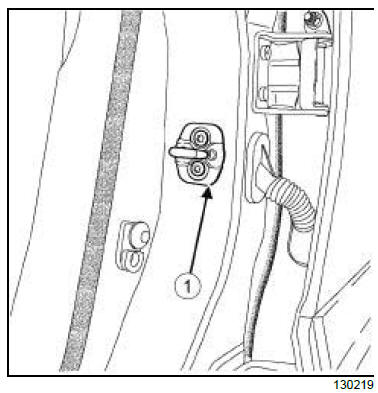

    • the front side door striker panel (1) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

Side opening element mechanisms

  • Refit:
    • the front side door striker panel,
    • the bolts.

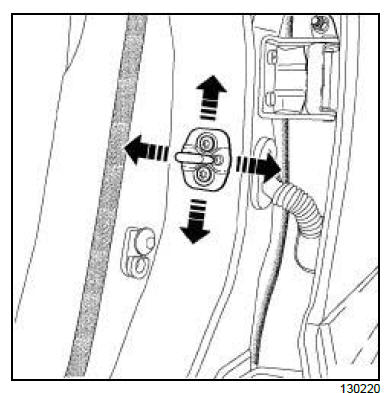

  • Adjust the striker panel of the front side door.
  • Check if it is possible to close the door.

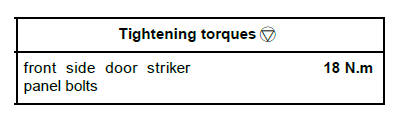

  • Torque tighten the front side door striker panel bolts (18 N.m).
    Front side door check strap: Removal - Refitting

    Front side door lock: Removal - Refitting
