Renault Koleos Service Repair Manual: Rear centre seat belt: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove:
  • the headrests from the rear seats,
  • the rear centre armrest (see Rear centre armrest: Removal - Refitting) (79A, Seat accessories),
  • the rear seat backrest (see Complete rear seat: Removal - Refitting) (76A, Rear seat frames and runners),
  • the rear seat backrest trim (see 1/3 and 2/3 rear bench seatback trim: Removal - Refitting) (78A, Rear seat trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Remove:

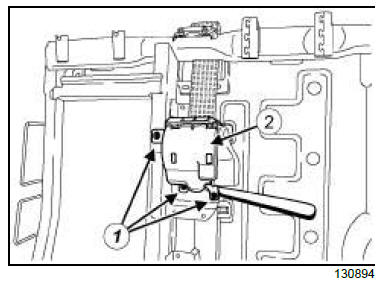

  • the clips (1) ,
  • the rear centre seat belt automatic inertia reel cover (2) .

• Remove:

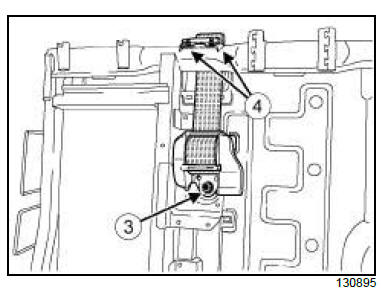

  • the rear centre seat belt automatic inertia reel bolt (3) ,
  • the nuts (4) for the rear centre seat belt guide,
  • the " rear centre seat belt - rear centre seat belt automatic inertia reel " assembly.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Fit the " rear centre seat belt - rear centre seat belt automatic inertia reel " assembly in place.
• Refit:
  • the rear centre seat belt automatic inertia reel bolt,
  • the nuts for the rear centre seat belt guide.

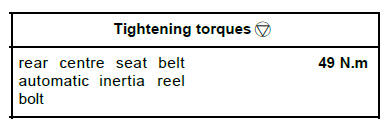

• Torque tighten the rear centre seat belt automatic inertia reel bolt (49 N.m).
• Refit:
  • the rear centre seat belt automatic inertia reel cover
  • the clips.

II - FINAL OPERATION.

• Refit:
  • the rear seat backrest trim (see 1/3 and 2/3 rear bench seatback trim: Removal - Refitting) (78A, Rear seat trim),
  • the rear seat backrest (see Complete rear seat: Removal - Refitting) (76A, Rear seat frames and runners),
  • the rear centre armrest (see Rear centre armrest: Removal - Refitting) (79A, Seat accessories),
  • the rear seat headrests.
