Renault Koleos Service Repair Manual: Navigation screen: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / On-board telematics system / Navigation screen: Removal - Refitting

NAVIGATION AID 1 or NAVIGATION AID 2 or NAVIGATION AID 4

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

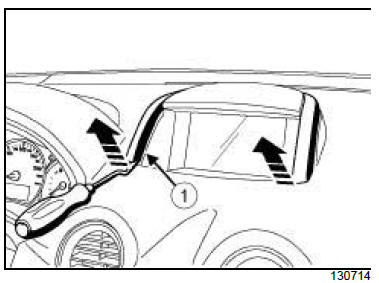

  • Remove the front centre speaker trim (1) .

Electrical equipment

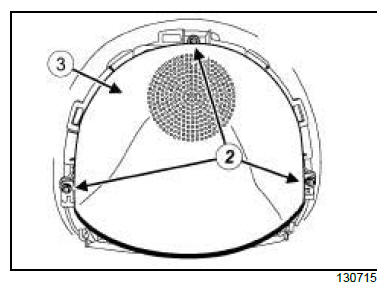

  • Remove:
    • the front centre speaker cover bolts (2) ,
    • the front centre speaker cover (3) .

Electrical equipment

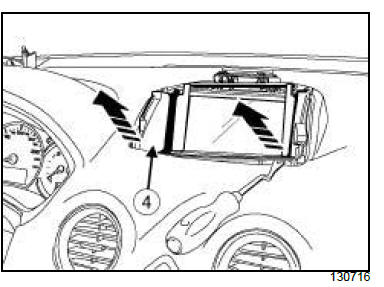

  • Remove the navigation screen protector (4) using a flat-blade screwdriver.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

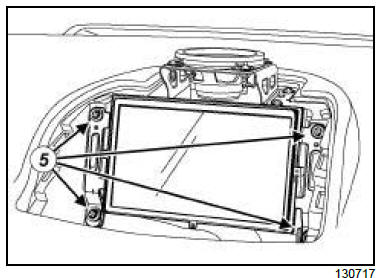

  • Remove the bolts (5) .

Electrical equipment

  • Remove the navigation screen.

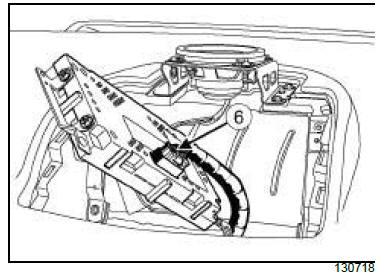

  • Disconnect the connector (6) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the connector.
  • Refit:
    • the navigation screen,
    • the navigation screen bolts.

II - FINAL OPERATION.

  • Refit:
    • the navigation screen protector,
    • the front centre speaker cover,
    • the front centre speaker cover bolts,
    • the front centre speaker trim.
