REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

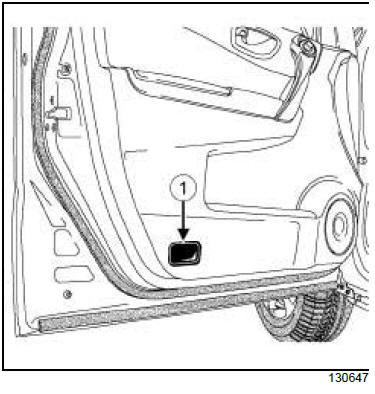

Front door side

Electrical equipment

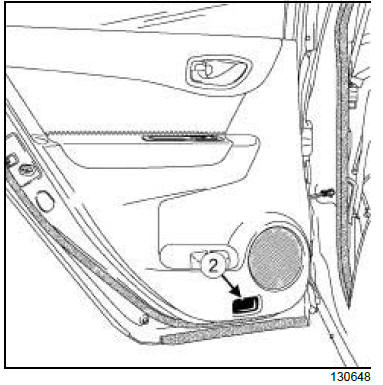

Rear door side

Electrical equipment

  • Remove the lower door light (1) or (2) using a small flat-blade screwdriver.
  • Disconnect the connector.

Electrical equipment

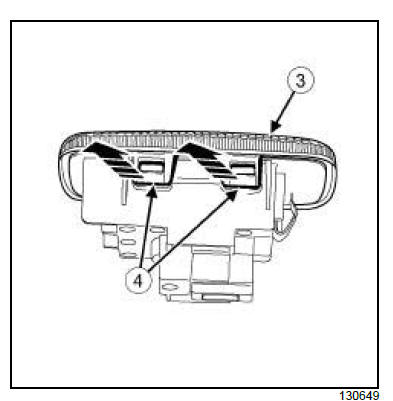

  • Remove the translucent cover (3) by unclipping the clips (4) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • When replacing the bulb, use an approved 12V 5W bulb.
  • Refit the translucent cover.
  • Connect the connector.
  • Refit the lower door light.

Courtesy light: Removal - Refitting

SUN VISOR + MIRROR WITH LIGHTING

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

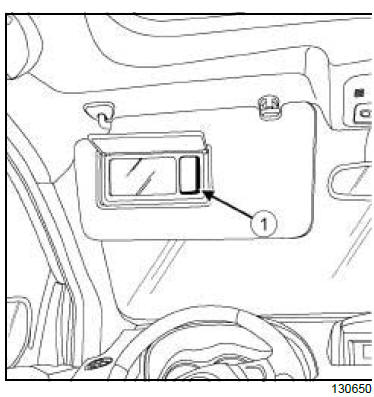

  • Unclip the courtesy light translucent cover (1) using a small flat-blade screwdriver.

Electrical equipment

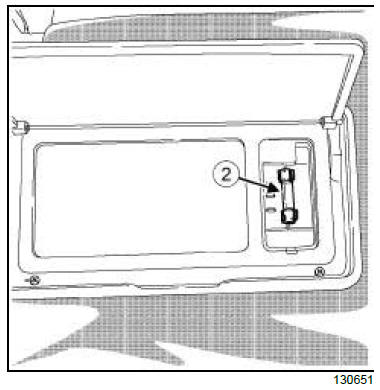

  • Remove the bulb (2) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • When replacing the bulb, use an approved 12V 0.25 A bulb.
  • Refit:
    • the bulb,
    • the translucent cover.
