Renault Koleos Service Repair Manual: Heating: List and location of components

Renault Koleos Service Repair Manual / Air conditioning / Heating / Heating: List and location of components

LEFT-HAND DRIVE

  1. Control panel
  2. Cabin filter
  3. Rear air distribution duct
  4. Recirculation motor
  5. Air mixing motor (front passenger side)
  6. Air mixing motor (driver's side)
  7. Air distribution motor
  8. Air distribution unit
  9. Heater matrix
  10. Motor-driven fan assembly
  11. Heater resistance
  12. Passenger compartment fan assembly control unit (front and rear)
  13. Front side air distribution duct
  14. Glove box air duct
  15. A-pillar air distribution duct
  16. Front central air distribution duct
  17. Rear fan assembly

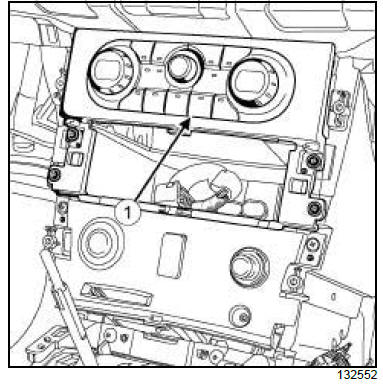

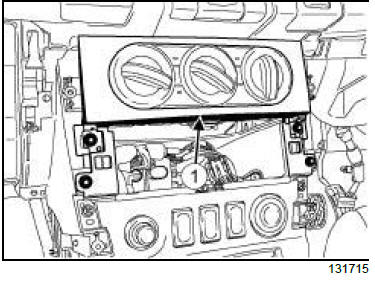

1 - Control Panel

Heating

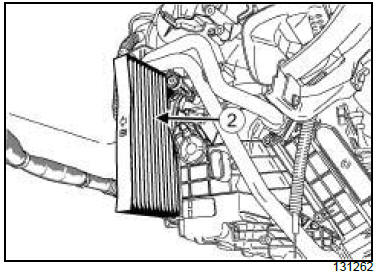

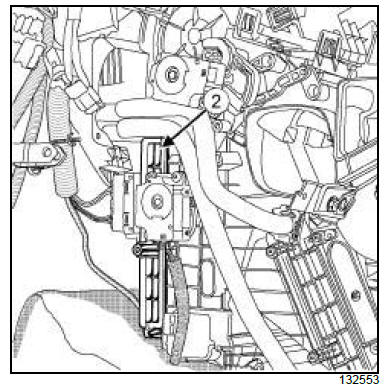

2 - Cabin filter

Heating

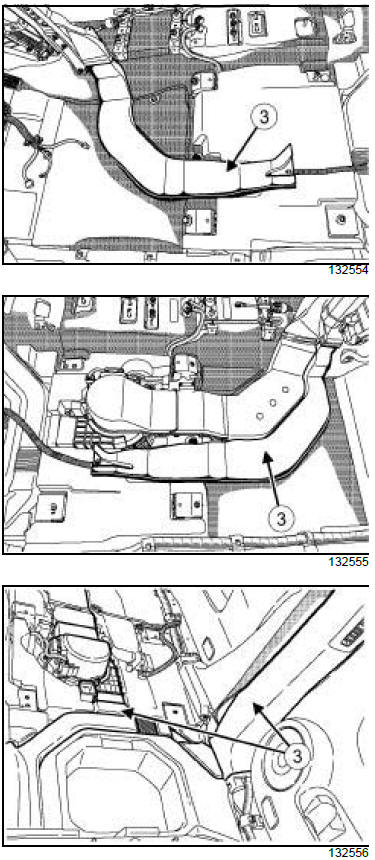

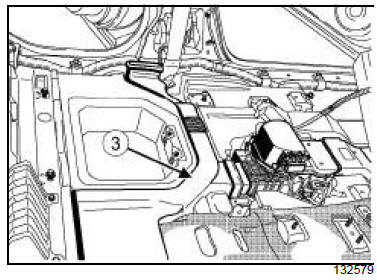

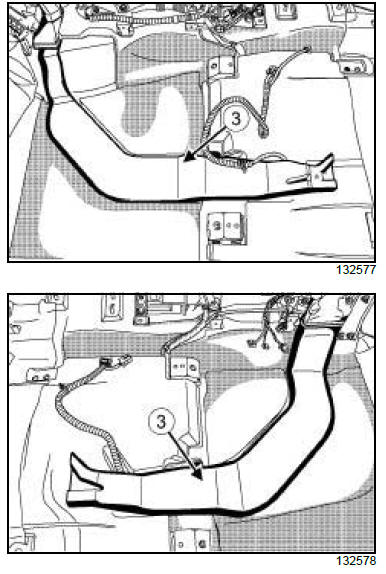

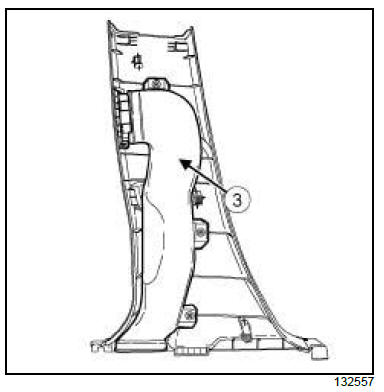

3 - Rear air distribution duct

Heating

Heating

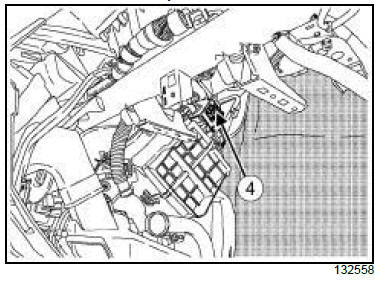

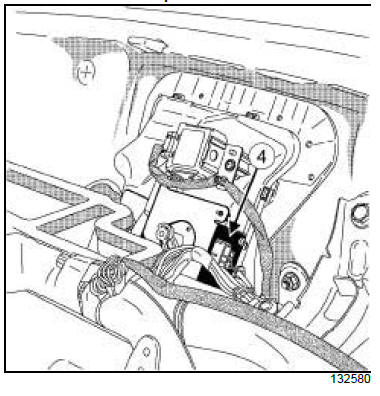

4 - Air recirculation flap motor

Heating

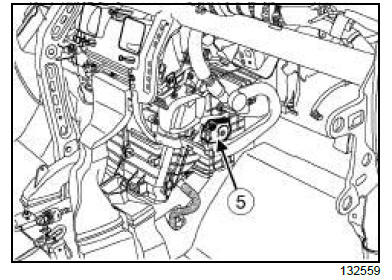

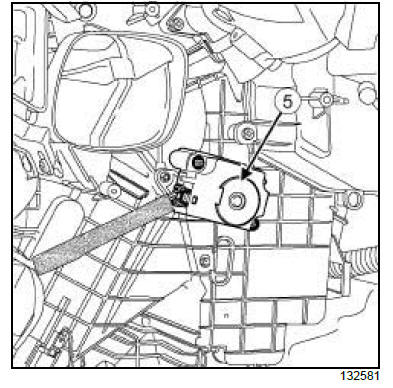

5 - Air mixing motor (front passenger side)

Heating

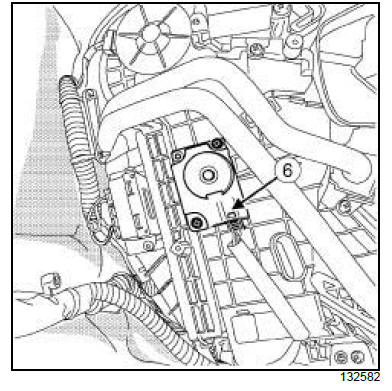

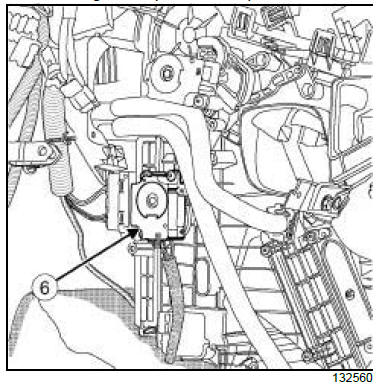

6 - Air mixing motor (driver's side)

Heating

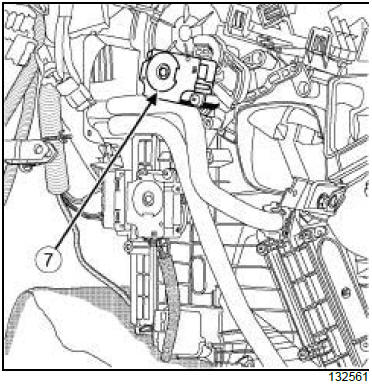

7 - Air distribution flap motor

Heating

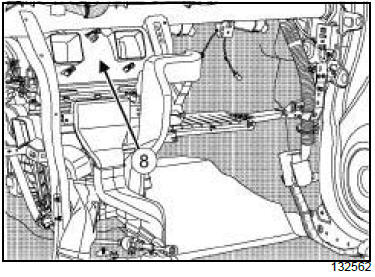

8 - Air distribution unit

Heating

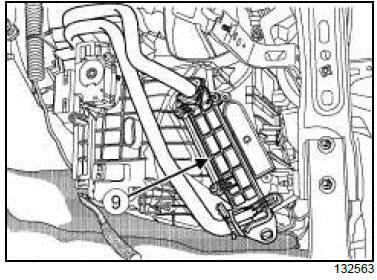

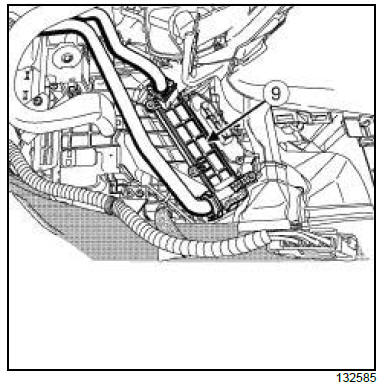

9 - Heater matrix

Heating

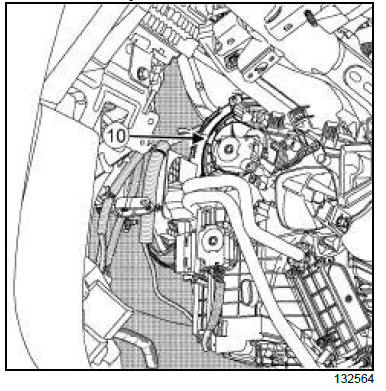

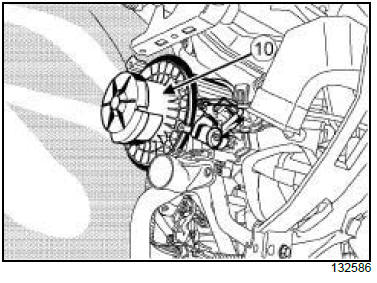

10 - Fan assembly

Heating

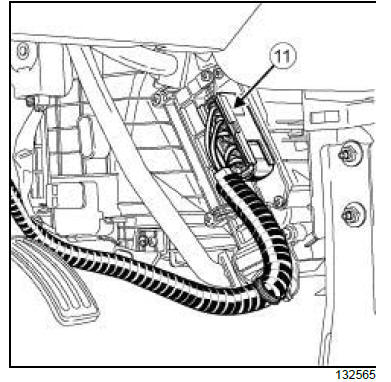

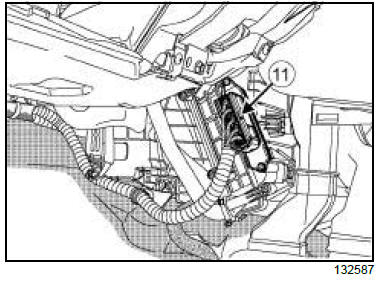

11 - Heating resistor

Heating

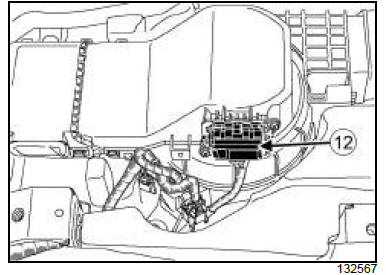

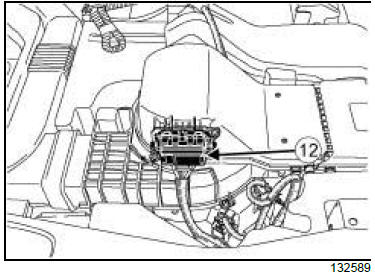

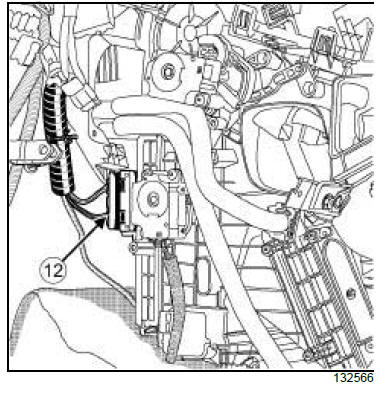

12 - Passenger compartment fan assembly control unit (front side)

Heating

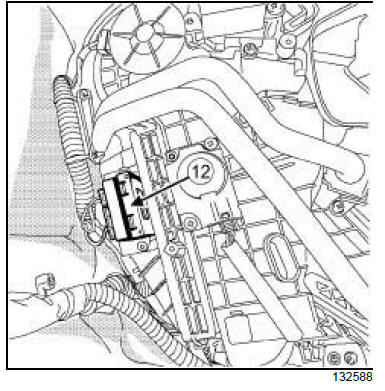

12 - Passenger compartment fan assembly control unit (rear side)

Heating

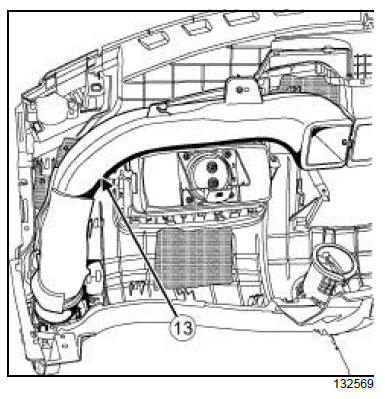

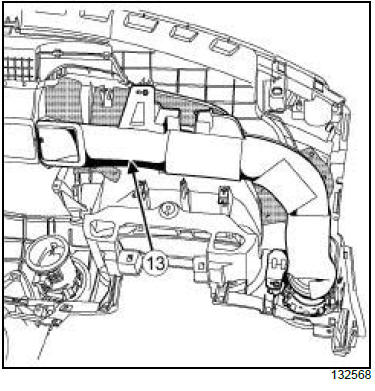

13 - Front side air distribution duct

Heating

Heating

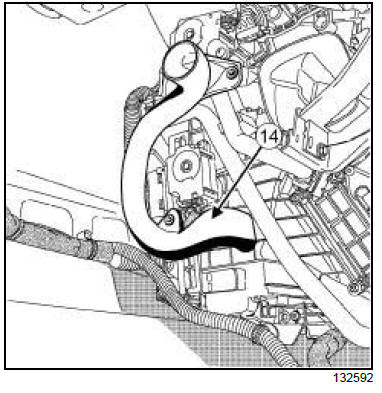

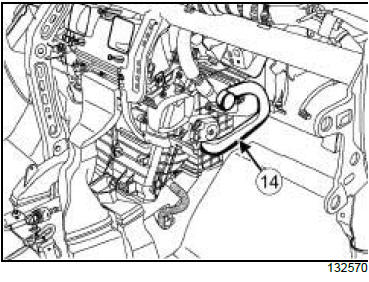

14 - Glove box air duct

Heating

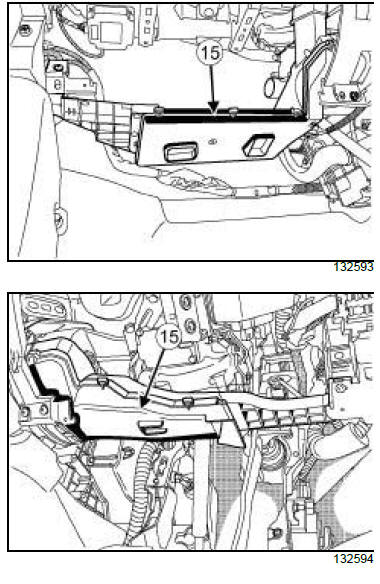

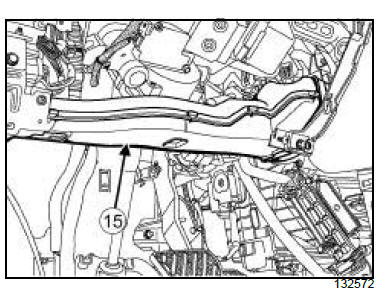

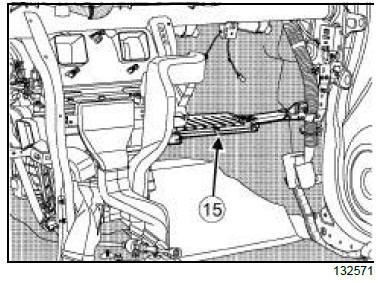

15 - A-pillar air distribution duct

Heating

Heating

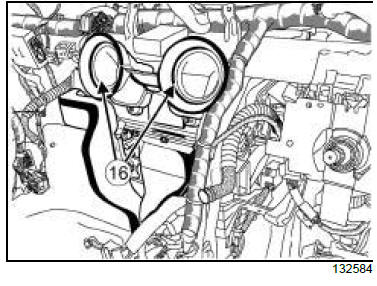

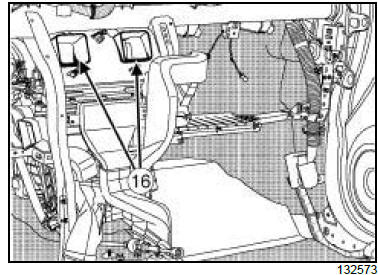

16 - Front central air distribution duct

Heating

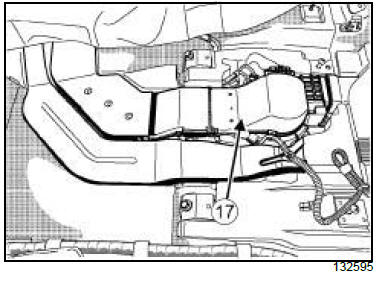

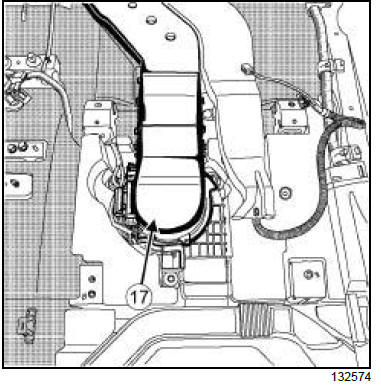

17 - Rear fan assembly

Heating

RIGHT-HAND DRIVE

  1. Control panel
  2. Passenger compartment filter
  3. Rear air distribution duct
  4. Recirculation motor
  5. Air mixer motor (front passenger side)
  6. Air mixer motor (driver's side)
  7. Air distribution motor
  8. Air distribution unit
  9. Heater matrix
  10. Motor-driven fan assembly
  11. Heater resistance
  12. Passenger compartment fan assembly control unit (front and rear)
  13. Front side air distribution duct
  14. Glove box air duct
  15. A-pillar air distribution duct
  16. Front central air distribution duct
  17. Rear fan assembly

1 - Control Panel

Heating

2 - Passenger compartment filter

Heating

3 - Rear air distribution duct

Heating

Heating

4 - Air recirculation flap motor

Heating

5 - Air mixing flap motor (front passenger side)

Heating

6 - Air mixing flap motor (driver's side)

Heating

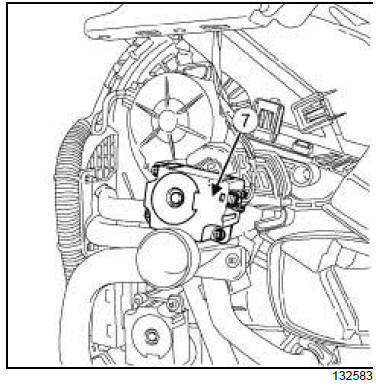

7 - Air distribution flap motor

Heating

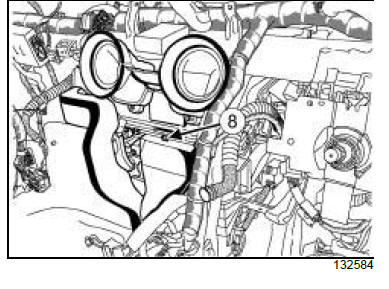

8 - Air distribution unit

Heating

9 - Heater matrix

Heating

10 - Fan assembly

Heating

11 - Heating resistor

Heating

12 - Passenger compartment fan assembly control unit (front)

Heating

12 - Passenger compartment fan assembly control unit (rear)

Heating

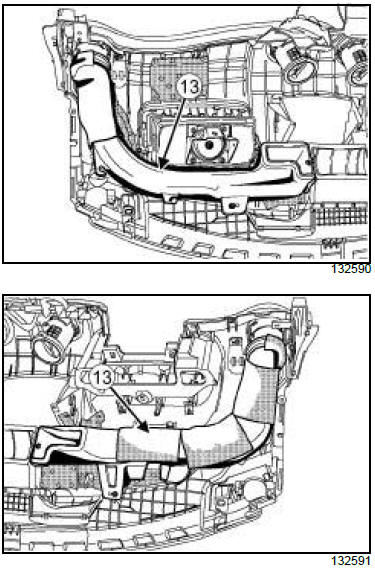

13 - Front air distribution duct

Heating

14 - Glove box air duct

Heating

15 - A-pillar air distribution duct

Heating

16 - Front central air distribution duct

Heating

17 - Rear fan assembly

Heating

    Heating
