Renault Koleos Service Repair Manual: Rear wheel arch liner: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment),
  • Remove the rear wheels (see Wheel: Removal - Refitting) (35A, Wheels and tyres).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exterior protection

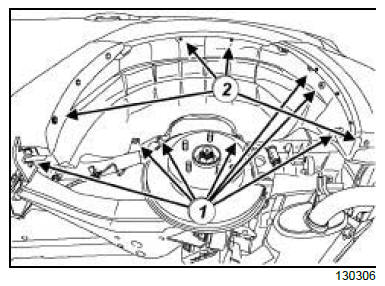

  • Remove: - the clips (1) , - the bolts (2) , - the rear wheel arch liner.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Check the condition of the clips and replace them if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the rear wheel arch liner,
    • the clips (1) ,
    • the bolts (2) .

III - REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear wheels (see Wheel: Removal - Refitting) (35A, Wheels and tyres).
