Renault Koleos Service Repair Manual: Bonnet lock: Removal - Refitting

Non-side opening element mechanisms

REMOVAL

I - OPERATION FOR PREPARATION OF PART CONCERNED

  • Remove the front bumper (see 55A, Exterior protection, Front bumper: Removal - Refitting, page 55A-1) .

Non-side opening element mechanisms

  • Remove:

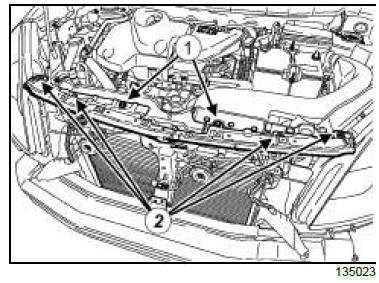

    • the bolts (1) ,
    • the clips (2) ,
    • the radiator upper grille.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

  • Remove:

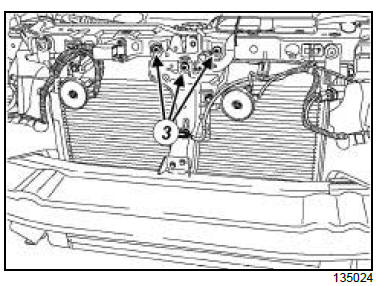

    • the bolts (3) ,
    • the bonnet catch.

Non-side opening element mechanisms

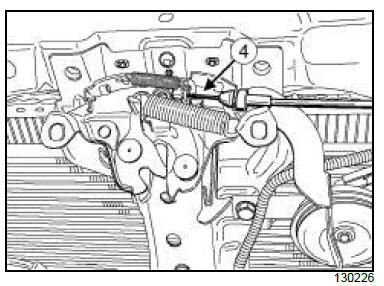

  • Remove the bonnet release cable (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Non-side opening element mechanisms

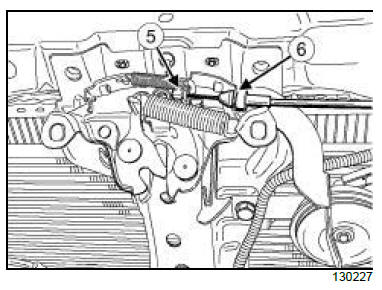

  • Place the bonnet release cable at (5) and (6) .

Non-side opening element mechanisms

  • Refit:
    • the bonnet catch,

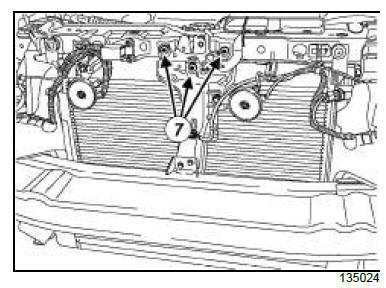

    • the bolts (7) on the bonnet catch.
  • Pre-tighten the bonnet catch bolts.
  • Adjust the bonnet clearances and flush fitting (see Vehicle panel gaps: Adjustment value) (01C, Vehicle bodywork specifications).
  • Torque tighten the bonnet catch bolts (22 N.m).

II - FINAL OPERATION

  • Refit:
    • the radiator upper grille,
    • the clips (2) ,
    • the bolts (1) ,
  • the front bumper (see 55A, Exterior protection, Front bumper: Removal - Refitting, page 55A-1)
    Bonnet release control: Removal - Refitting

    Bonnet release cable: Removal - Refitting
