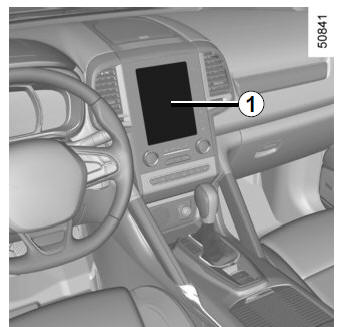

Display 1 Vehicles fitted with a touchscreen multimedia screen, navigation aid systems, etc. The time and exterior temperature are displayed on the multifunction screen 1. Refer to the handbook for the equipment. External temperature indicator Special note: When the exterior temperature is - 3 ºC to + 3 ºC, the ºC characters flash (signalling a risk of ice on the road).
|
Renault Koleos Service Repair Manual > Radio: Display: Removal - Refitting
REMOVAL I - REMOVAL PREPARATION OPERATION Remove the front centre speaker trim (1) . Remove: the front centre speaker cover bolts (2) , the front centre speaker cover. II - OPERATION FOR REMOVAL OF PART CONCERNED Unclip the " display - display protector " assembly. Disconnect the display connector. ...
