REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
- Remove the rear wheels (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, page 35A-1) .
- Fit the pedal press to the brake pedal to limit the
outflow of brake fluid.

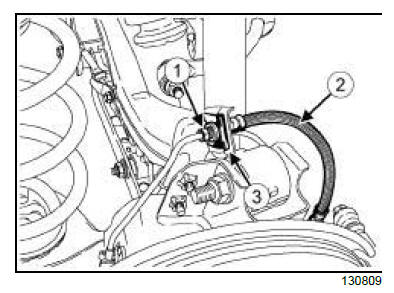

- Undo the rigid pipe union (1) on the rear brake hose.
- Remove the clip (3) from the rear brake hose.
- Disconnect the rear brake hose (2) .

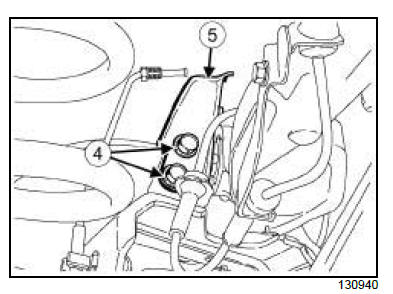

- Remove:
- the bolts (4) from the rear brake hose mounting,
- the rear brake hose mounting (5) ,
- the rear wheel speed sensor (see 38C, Anti-lock
braking system, Rear wheel speed sensor: Removal
- Refitting, page 38C-10)
II - OPERATION FOR REMOVAL OF PART
CONCERNED

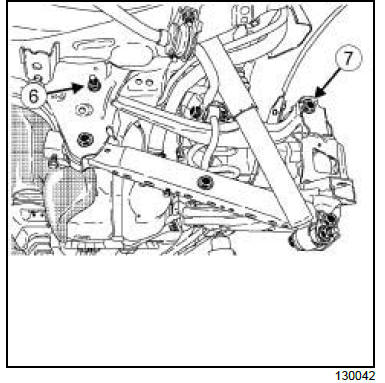

- Loosen:
- the bolt and nut (6) of the upper arm of the rear axle
subframe,
- the upper arm bolt and nut (7) of the rear stub axle
carrier.

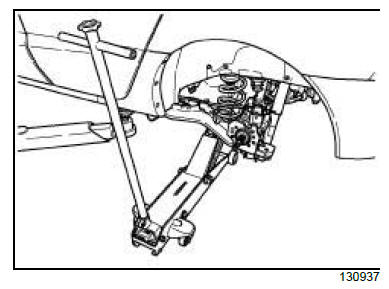

- Position the trolley jack with a shim under the lower
seat of the spring.

REFITTING
I - REFITTING PREPARATION OPERATION
- Always replace the upper arm nuts.
II - REFITTING OPERATION FOR PART
CONCERNED
- Position the trolley jack with a shim under the lower
seat of the spring.
- Refit:
- the upper arm,

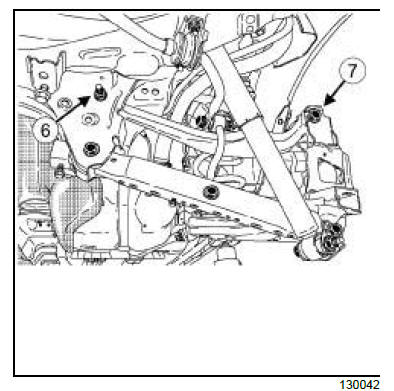

- the bolt and nut (6) of the upper arm of the rear axle
subframe,
- the upper arm bolt and nut (7) of the rear stub axle
carrier.
- Lower the trolley jack.

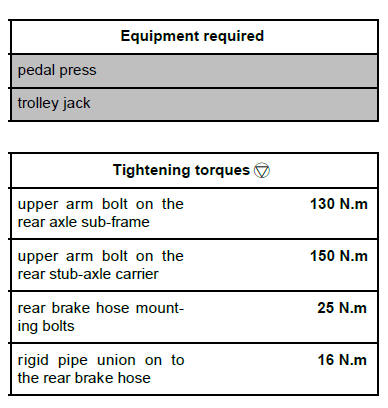

- Torque tighten:
- the upper arm bolt on the rear axle sub-frame
(130 N.m),
- the upper arm bolt on the rear stub-axle carrier
(150 N.m),
III - FINAL OPERATION.
- Refit:
- the rear wheel speed sensor (see 38C, Anti-lock
braking system, Rear wheel speed sensor: Removal
- Refitting, page 38C-10) ,
- the rear brake hose mounting (5) ,
- the rear brake hose mounting bolts (4) ,
- the rear brake hose (2) ,
- the rigid pipe union (1) on to the rear brake hose,
- the clip (3) on the rear brake hose.
- Torque tighten:
- the rear brake hose mounting bolts (25 N.m),
- the rigid pipe union on to the rear brake hose
(16 N.m).
- Bleed the brake circuit (see 30A, General information,
Braking circuit: Bleed, page 30A-4) .
- Refit the rear wheels (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, page 35A-1) .
- Adjust:
- the alignment (see 30A, General information,
Rear axle system: Adjustment, page 30A-13) ,
- the neutral position of the steering wheel angle
sensor (see: Fault finding - Programming) (80B,
Headlights).
|
