General information

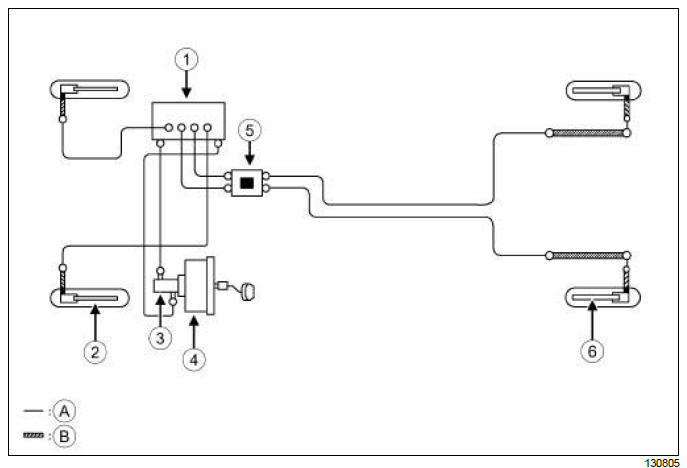

  1. ABS hydraulic unit
  2. Front brake disc
  3. Master cylinder
  4. Brake servo
  5. Underbody connection
  6. Rear brake disc
  1. Rigid brake pipes
  2. Brake hoses
IMPORTANT This is a diagram of the general principle, do not use it as a reference for take-off points or circuit allocation. When replacing components in a vehicle's braking circuit, always mark the pipes before removing them.
