Tank

IMPORTANT During this operation, be sure to:
  • refrain from smoking or bringing red hot objects close to the working area,
  • be careful of fuel splashes when disconnecting the union.



IMPORTANT Wear leaktight gloves (Nitrile type) for this operation.

I - OIL SERVICE

  • Disconnect the battery.
  • Lift up:
    • the rear bench seat base
    • partially, the floor carpet under the rear bench seat base.

Tank

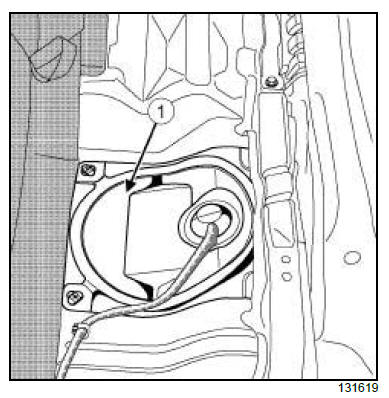

  • Partially remove the blanking cover (1) from the inspection flap.

2TR

Tank

Note: Make preparations for fuel outflow from the supply and return pipes.

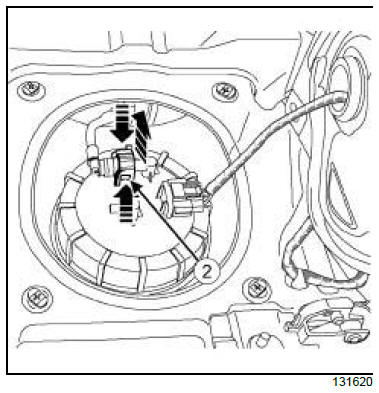

  • Disconnect the quick-release union (2) from the fuel supply pipe.

M9R

Tank

Note: Make preparations for fuel outflow from the supply and return pipes.

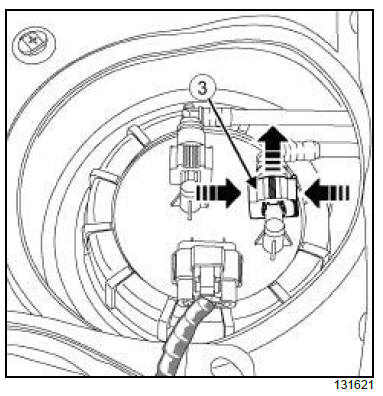

  • Disconnect the quick-release union (3) from the fuel supply pipe.



  • Fit blanking plugs on the unions using the blanking plug kit.

Tank

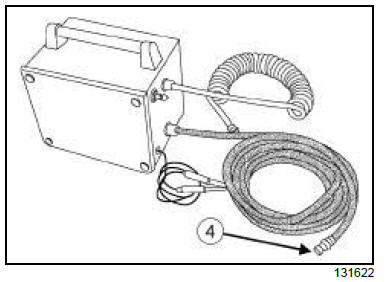

  • Connect the pneumatic transfer pump for fuels (4) to the fuel supply pipe quick-release union.
  • Place the discharge pipe of the pneumatic transfer pump for fuels in a container.
  • Activate the pneumatic pump.
  • Let the fuel flow out until it the flow is intermittent.

II - REFITTING

  • Remove:
    • the pneumatic transfer pump for fuels,
    • the blanking plugs.
  • Connect the fuel supply quick-release union to the fuel sender.
  • Refit the blanking cover on the inspection flap.
  • Fit:
    • the floor carpet under the rear bench seat base
    • the rear bench seat base
  • Connect the battery.
    Tank
