M9R

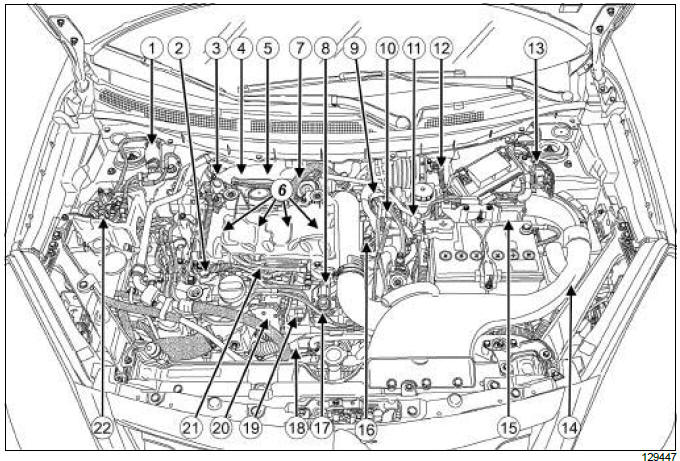

Diesel injection

  1. Manual priming pump
  2. Injection rail pressure regulator
  3. Exhaust gas pressure sensor
  4. Oxygen sensor
  5. Exhaust gas temperature sensor
  6. Injectors
  7. Turbocharger
  8. Injector rail pressure sensor
  9. Fuel temperature sensor
  10. Fuel pressure regulator on the high pressure pump
  11. High-pressure pump
  12. Airflow meter
  13. Turbocharging pressure regulator control solenoid valve
  14. Pre/postheating unit
  15. Diesel injection computer
  16. Camshaft position sensor
  17. Exhaust gas recirculation solenoid valve control
  18. Intercooler
  19. Turbocharger pressure sensor
  20. Air inlet valve
  21. Injector rail
  22. Fuel filter

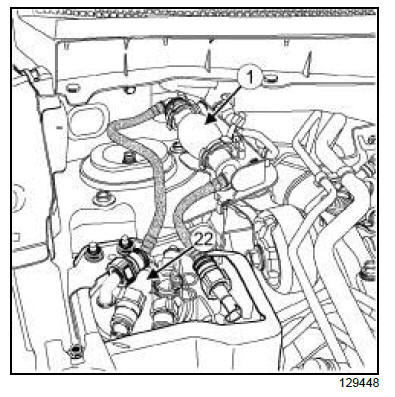

Diesel injection

(1) Manual priming pump
(22) Fuel filter

Diesel injection

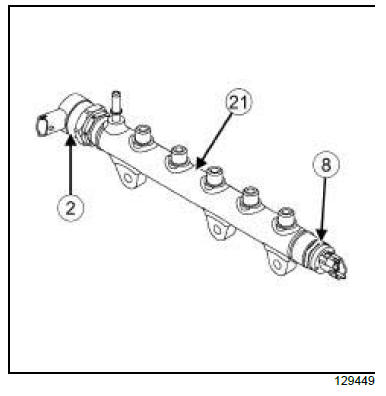

(2) Injection rail pressure regulator
(8) Injector rail pressure sensor
(21) Injector rail

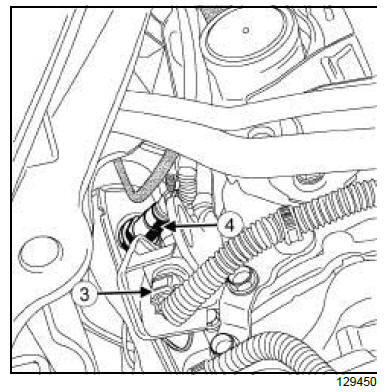

Diesel injection

(3) Exhaust gas pressure sensor
(4) Oxygen sensor

Diesel injection

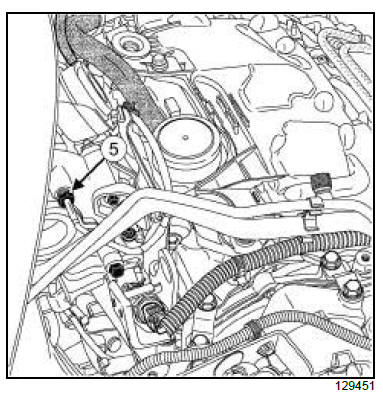

(5) Exhaust gas temperature sensor

Diesel injection

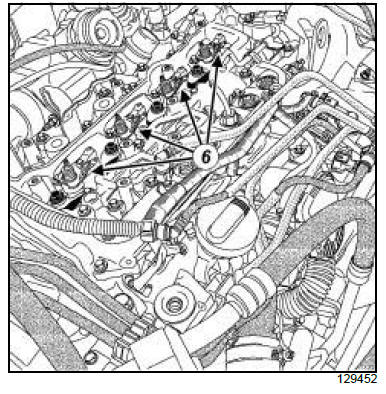

(6) Injectors

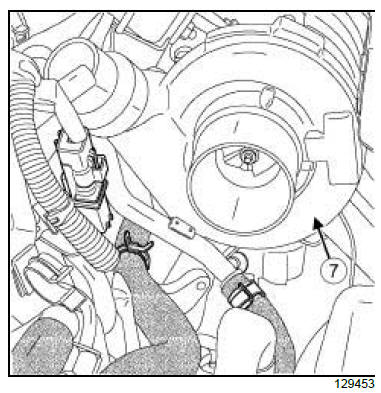

Diesel injection

(7) Turbocharger

Diesel injection

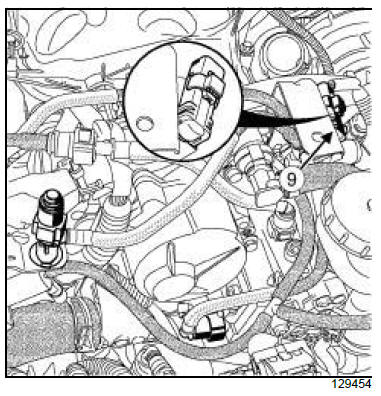

(9) Fuel temperature sensor

Diesel injection

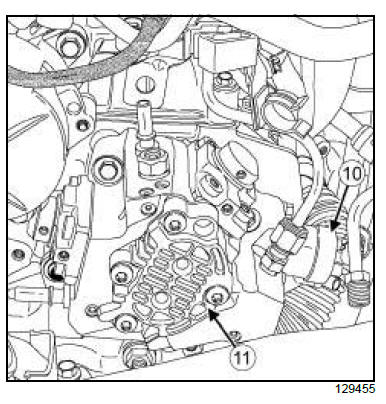

(10) Fuel pressure regulator on the high pressure pump
(11) High-pressure pump

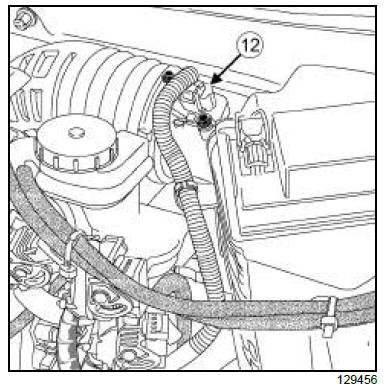

Diesel injection

(12) Airflow meter

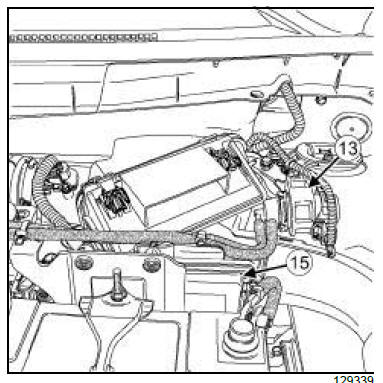

Diesel injection

(13) Turbocharging pressure regulator control solenoid valve
(15) Diesel injection computer

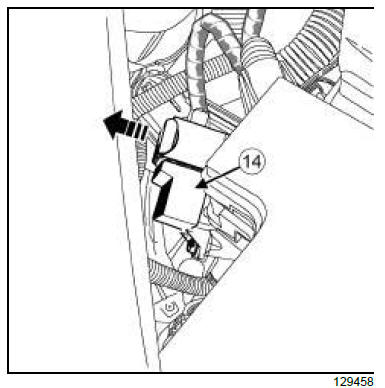

Diesel injection

(14) Pre/postheating unit

Diesel injection

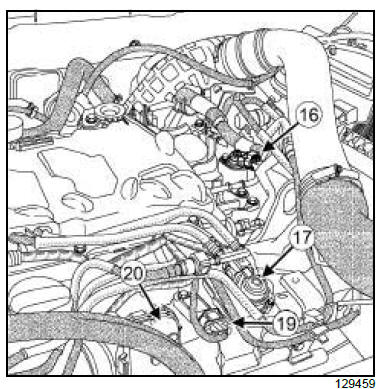

(16) Camshaft position sensor
(17) Exhaust gas recirculation solenoid valve control
(19) Turbocharger pressure sensor
(20) Air inlet valve

Diesel injection

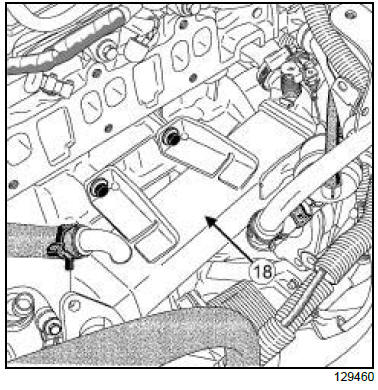

(18) Intercooler
