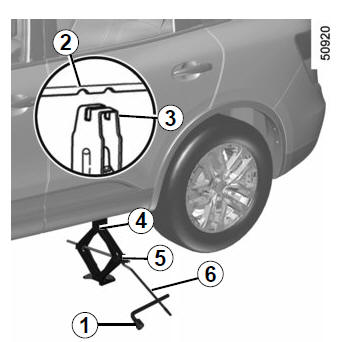

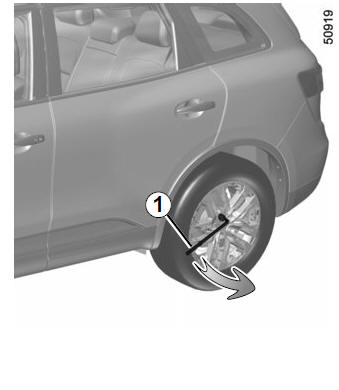

Vehicles equipped with a jack, wheelbrace and jack handle If necessary, remove the wheel trim. Use the wheelbrace 1 to slacken off the wheel bolts. Fit it so that you press downwards rather than pulling upwards. Start cranking up jack 4 by hand to align the base plate (which should sit flat against the ground) and until the jack head 3 is in the centre of mark 2. Attach the wheelbrace 1 and the jack handle 6 (in groove 5). Turn the wheelbrace until the wheel lifts off the ground.
Turn it a few times to lift the wheel off the ground. Undo the bolts and take off the wheel. Fit the emergency spare wheel on the central hub and turn it to locate the mounting holes in the wheel and the hub. Tighten the bolts, checking that the wheel is correctly positioned on its hub. Lower the jack. With the wheel on the ground, tighten the bolts fully and have the tightness of the bolts checked and the emergency spare wheel pressure checked as soon as possible.
|
