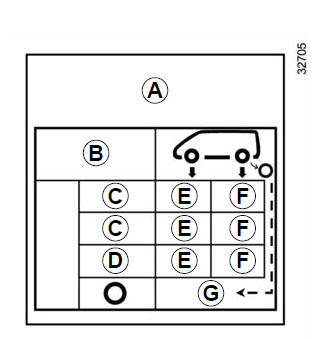

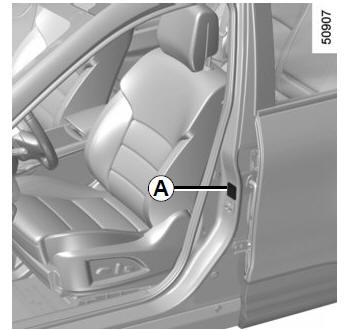

Label A Open the driver's door to read it. Tyre pressures should be checked when the tyres are cold. If the tyre pressures cannot be checked when the tyres are cold, increase the pressures from 0.2 to 0.3 bar (or 3 PSI). Never deflate a hot tyre.
Vehicle fitted with a tyre pressure monitoring system In cases of under-inflation (puncture, low pressure, etc.), warning light lights up on the instrument panel. Special note concerning fully laden vehicles (Maximum Permissible All-Up Weight) and towing a trailer: the maximum speed must be limited to 60 mph (100 kph) and the tyre pressure increased by 0.2 bar. Tyre safety and use of snow chains: Refer to the information on "Tyres" for the servicing conditions and, depending on the version, the use of chains.
|
Renault Koleos Service Repair Manual > Collision: Vehicle involved in a frontal
impact: Description
COMBINATIONS FOR REPLACING WELDED STRUCTURAL PARTS IN ACCORDANCE WITH IMPACT SUSTAINED 1st Degree front end cross member front side member closure panel front section of front side member (partial) 2nd Degree front side end cross member engine support front wheel arch front side member closure panel ...
