Renault Koleos Owners Manual: Transporting objects in the luggage compartment

Renault Koleos Owners Manual / Your comfort / Transporting objects in the luggage compartment

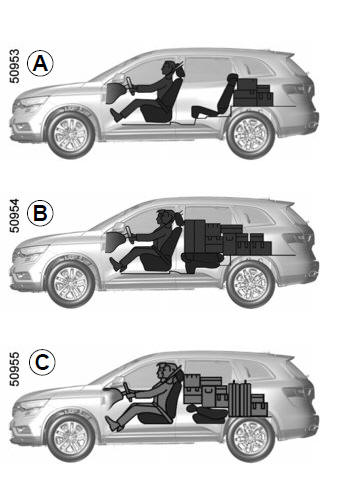

Always position the objects transported so that the largest surface is against:

  • The rear bench seatback for normal loads (example A).
  • The front seatbacks with the rear seatbacks folded down, the mobile floor in the flat-floor position (example B).
  • The front seatbacks with the rear seatbacks folded down, the mobile floor in the stored-away position, as is the case for maximum loads (example C).

Transporting objects in the luggage compartment

If you have to place objects on the folded seatback, it is necessary that you lower the headrests before folding the seatback so that it can be folded as flat as possible against the seat.

Transporting objects in the luggage compartment

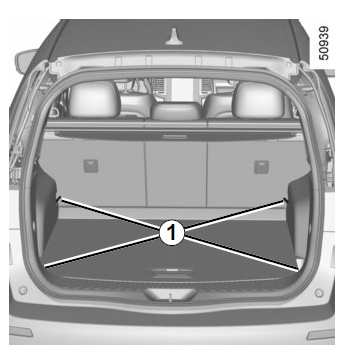

Always position the heaviest items directly on the floor. Use the lashing points 1 on the boot floor, if these are fitted to the vehicle. The luggage should be loaded in such a way that no items will be thrown forward and strike the occupants if the driver has to brake suddenly. Fasten the rear seat belts, even if the seats are not occupied.
    Boot fittings

    Transporting objects towbar
