ELECTRICAL SUNROOF + FIXED REAR SECTION

Non-side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Half-open the sunroof mobile panel.
  • Remove the sunroof deflector (see 52A, Non-side opening element mechanisms, Sunroof deflector: Removal - Refitting, page 52A-13) (Non-side opening element mechanisms).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

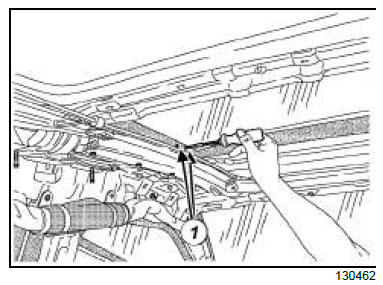

  • Remove the bolts (1) from the front of the sunroof mobile panel

Non-side opening element mechanisms

  • Remove:

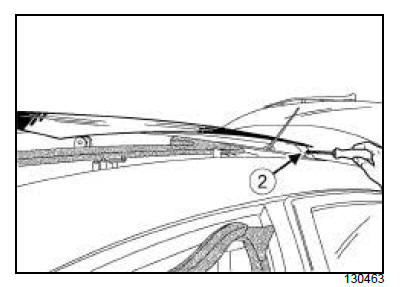

    • the bolt (2) from the rear of the sunroof mobile panel,
    • the sunroof mobile panel (this operation requires two people).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Note: When removing and refitting the sunroof mobile panel, coat the bolts with a small amount of Frenbloc.

When replacing the sunroof mobile panel, replace the bolts with the bolts supplied with the sunroof mobile panel.
  • Lubricate the linkages and rail mechanisms.
  • Refit the sunroof mobile panel (this operation requires two people).
  • Torque tighten:
    • the sunroof mobile panel front bolts (5.6 N.m),
    • the sunroof mobile panel rear bolt (5.6 N.m).

II - FINAL OPERATION.

  • Refit the sunroof deflector (see 52A, Non-side opening element mechanisms, Sunroof deflector: Removal - Refitting, page 52A-13) (Non-side opening element mechanisms).
