2TR
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift.
- Disconnect the battery.
- Remove the air inlet sleeve .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

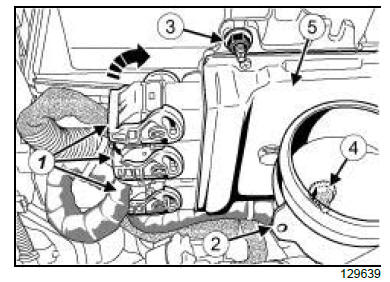

- Disconnect the injection computer connectors (1) .
- Remove:
- the air resonator sleeve (2) ,
- the nut (3) of the injection computer,
- the bolt (4) of the injection computer,
- the injection computer (5) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the injection computer,
- the bolt of the injection computer,
- the nut of the injection computer.

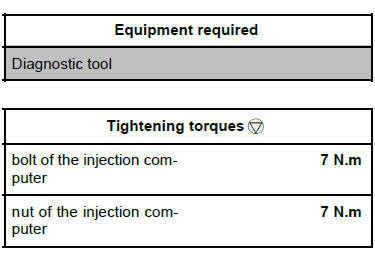

- Torque tighten:
- the bolt of the injection computer (7 N.m),
- the nut of the injection computer (7 N.m).
- Refit the air resonator sleeve.
- Connect the injection computer connectors.
II - FINAL OPERATION.
- Refit the air intake sleeve.
- Connect the battery.
- Perform the programming of the injection computer
using the Diagnostic tool.
|
